20 Ton Transmission Line Stringing Tools Manual Chain Block Lifting Hoist

  • 1
  • 2

Brand Name : Boyu

Model Number : HSC-20A

Certification : ISO 9001

Place of Origin : China

MOQ : 2

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000 Sets/Month

Delivery Time : 15~30 days

Packaging Details : Wooden case

OEM Serive : YES

Test load : 250KN

Net weight : 193kg

Package dimensions : 64x38x64cm

Hand pull when fully loaded : 435x2(44.3x2)N(KG)

Rated load lifting capacity : 20Ton

Standard lifting height : 3m

Lifting chain number : 8

Lifting chain diameter : 10mm

Type : Manual Chain Block

Contact Now

HSC-20A Transmission Line Stringing Tools 20Ton Manual Chain Block Specification of Lifting Chain Hoist

Quick Detail

  • Designed and manufactured according to the standard of En13157.
  • It meets European CE safety standards.
  • The unique overload device (the use of one-way clutch) patent technology for selection.
  • Smooth rotation, high efficiency and small manual tension. Small size, light weight and easy to carry
  • It adopts low-alloy structural steel plat, which is safe, reliable and durable.
  • The shell material is high-quality alloy steel, strong and wearable, high safety performance.
  • High safety factor and long service life
Model HSC-0.5A HSC-1A HSC-1.5A HSC-2A HSC-3A HSC-5A HSC-10A HSC-20A HSC-30A HSC-50A
rated load lifting capacity ton 0.5 1 1.5 2 3 5 10 20 30 50
Standard lifting height m 2.5 2.5 2.5 3 3 3 3 3 3 3
Test load KN 6.3 12.5 18.7 25 37.5 63 125 250 375 625
Hand pull when fully loaded N(KG)

200

(20.5)

304

(31)

343

(35)

410

(41.8)

343

(35)

414

(42.2)

423

(43.2)

435x2

(44.3x2)

435x2

(244.3x2)

435x2

(244.3x2)

Lifting chain number 1 1 1 1 2 2 4 8 12 22
Lifting chain diameter mm 6 6 8 8 8 10 10 10 10 10

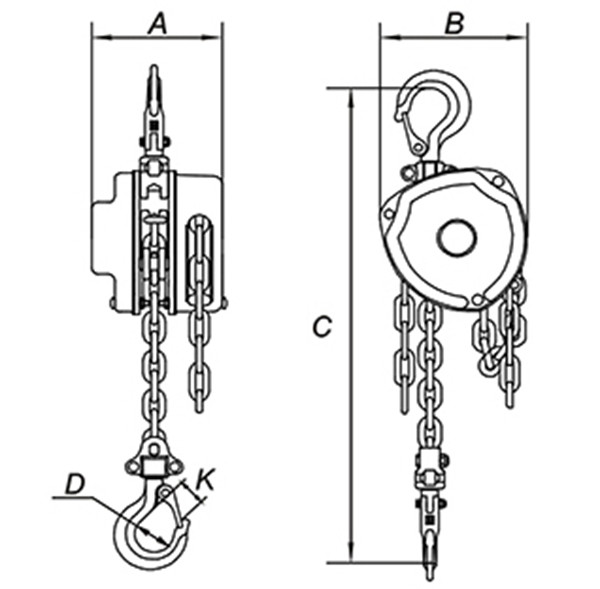

Main dimensions

mm

A 113 126 141 141 141 163 163 191 312 496
B 125 147 183 183 183 215 404.5 595 691 958
C 255 306 368 368 486 616 750 1000 1380 2578
D 36 40 45 50 58 64 85 110 110 170
K 30 34 38 41 48 52 64 85 81 125
Net weight kg 8.5 11 18 18.5 27 42 83 193 220 1092
Package dimensions cm

26*1

9*14

26*

21*15

33*

26*16

33*2

6*16

33*

27*16

43*

34*19

50*

41*21

64*

38*64

72*50*68 110*100*130
Increase in weight per 1 meter increase in height kg 1.7 1.7 2.3 2.3 3.7 5.3 9.7 19.4 28.2 50.2

Note: Except for the list, non-standard lifting height can be ordered

Description

  • Double pawl and stamping guide chain plate (double guide wheel structure selection) are more safe and reliable.
  • The structure is compact and reasonable, the whole machine runs smoothly, and the appearance is beautiful and novel.
  • The overall bearing is adopted, which greatly improves the performance, service life and easy maintenance of the product.
  • Using 800Mpa high-strength lifting chain and forged hook design to ensure slow lifting to prevent overload.
  • This product has been widely used in nuclear power, thermal power, power transmission and transformation.
  • The main components and the performance of the whole machine are strictly checked and tested. The reliability of the product is greatly improved and the use is safe.

20 Ton Transmission Line Stringing Tools Manual Chain Block Lifting Hoist

Workshop

20 Ton Transmission Line Stringing Tools Manual Chain Block Lifting Hoist
