TYSLX-2 Swivel Joints Rotatable Steel Cable Connector For Transmission Line

  • 1
  • 2

Brand Name : BOYU

Model Number : TYSLX-2

Certification : ISO9001

Place of Origin : China

MOQ : 100pieces

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100000pieces/month.

Delivery Time : 15-35days

Packaging Details : Container

Rated load : 20kN

Weight : 0.55kg

Dimensions A : 35mm

Dimensions B : 120mm

Dimensions C : 90mm

Dimensions D : 14mm

Dimensions E : 14mm

Product : Swivel Joints Rotatable Steel Cable Connector

Contact Now

TYSLX-2 Swivel Joints Rotatable Steel Cable Connector for Transmission Line

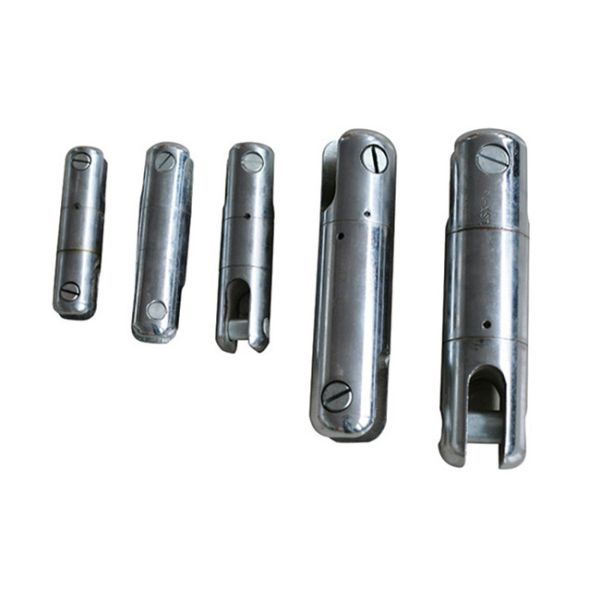

TYSLX Swivel Joints

The swivel joints are suitable to connect the pulling rope to the mesh sock joint mounted on the conductor, they are mounted on thrust bearings and they are designed to avoid torsion stain accumulation. They are made of highly tensile galvanized steel, the special design can bear the high radial loads, which occur during the passage over the pulleys.

Model Dimensions (mm) Rated load Weight
A B C D E (kN) (kg)
SLX-1 30 100 70 12 13 10 0.4
SLX-2 35 120 90 14 14 20 0.55
SLX-3 37 129 95 16 16 30 0.65
SLX-5 42 154 116 18 17 50 1.5
SLX-8 57 220 165 24 22 80 2.4
SLX-13 62 248 192 26 24 130 3.5
SLX-18 75 294 222 26 26 180 7.2
SLX-25 85 331 251 30 30 250 10.6
SLX-32 85 346 264 38 30 320 9.7

TYSLX-2 Swivel Joints Rotatable Steel Cable Connector For Transmission Line
