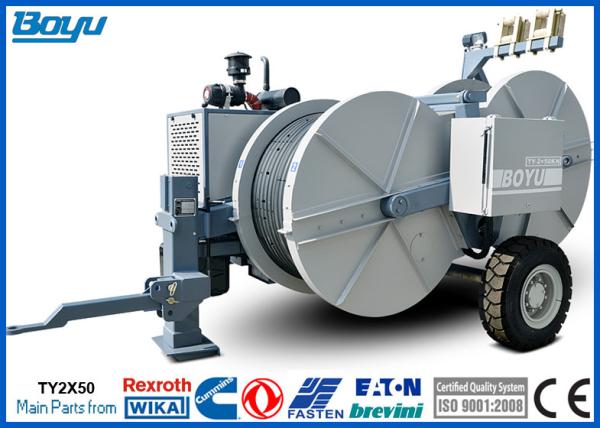

Hydraulic Cable Tension Stringing Equipment

  • 1
  • 2

Place of Origin : China

Brand Name : Boyu

Certification : ISO9001

Model Number : TY2X50-2

MOQ : 1set

Price : Negotiable

Packaging Details : Container

Delivery Time : 25-35 days

Payment Terms : TT/LC

Supply Ability : 100sets/month.

Price terms : FOB(Shanghai) or CIF (assigned port).

Contact Now

Max 11Tons 2x55kN Twin-Bundle Conductors 720mm2 Tension Stringing Equipment Hydraulic Cable Tensioner

Quick details
1. Twin-Bundle Conductor Tension Stringing Equipment
2. Main pump and motor and speed reducer: German Rexroth
3. Hydraulic meter: German
4. Max conductor diameter: 40mm
5. Groove number: 2x5

6. Hydraulic Tensioner for two bundle conductor
7. Max tension: 2x55kN/110kN 11Tons
8. Diesel: Cummins 77kw 103hp
9. Bull-wheel diameter: 1300/1500mm
10. Engine: Cummins

Characteristics
Bull-wheel diameter: 1300/1500mm
Max conductor diameter: 40mm
Groove number: 2x5
Total weight: 6000kg
Overall dimension (length*width*height): 4700×2300×2700mm

Main configuration

  • Engine: Cummins
  • Hydraulic pump: German Rexroth
  • Main motor: German Rexroth
  • Speed reducer: German Rexroth
  • Hydraulic meter: German

Description
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Performance

  1. Max intermittent tension: 2x55kN
  2. Max continuous tension: 2x50kN
  3. Speed at max tension: 2.5km/h
  4. Max speed: 5km/h
  5. Tension at max speed: 2x25kN
  6. Max reverse pulling force: 2*45kN/1*90kN
  7. Max reverse pulling speed: 5km/h

Engine
Diesel 77kw(103hp)
Cooling system water
Electrical system 24V

Configuration
2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter counters
2 digital speed meters
Control instruments for hydraulic system and diesel engine
Hydraulic front stabilizer
Grounding connection point

Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.

Additional Devices

  1. Lighting system for the trailer
  2. Hydraulic brake system for the trailer
  3. 2 hydraulic conductor clamps for drum change operations
  4. Electronic pull and speed recorder

Hydraulic Cable Tension Stringing Equipment

Manufacturer Introduction
Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. We are near the biggest city in China Shanghai about 3 hours by car.

We produce 40~60sets of stringing equipment each month and all kinds of accessories.

Established in 1997, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German
  2. Our company was founded in 1997, having 15 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.

Quality Guarantee
We have one year quality guarantee, if internal components go wrong within one year, we will change another for free. We can supply the specific components to the buyers with cost price after warranty period.

Hydraulic Cable Tension Stringing EquipmentHydraulic Cable Tension Stringing EquipmentHydraulic Cable Tension Stringing EquipmentHydraulic Cable Tension Stringing EquipmentHydraulic Cable Tension Stringing Equipment

Hydraulic Cable Tension Stringing Equipment

History
Founded in 1993, Yixing city power machinery factory
Established in 1997, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November, 2013, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 5000 sets. Our products are sold well in Australia, Egypt, England, Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria, Turkey, Peru, Colombia, Brazil, Argentina etc.
